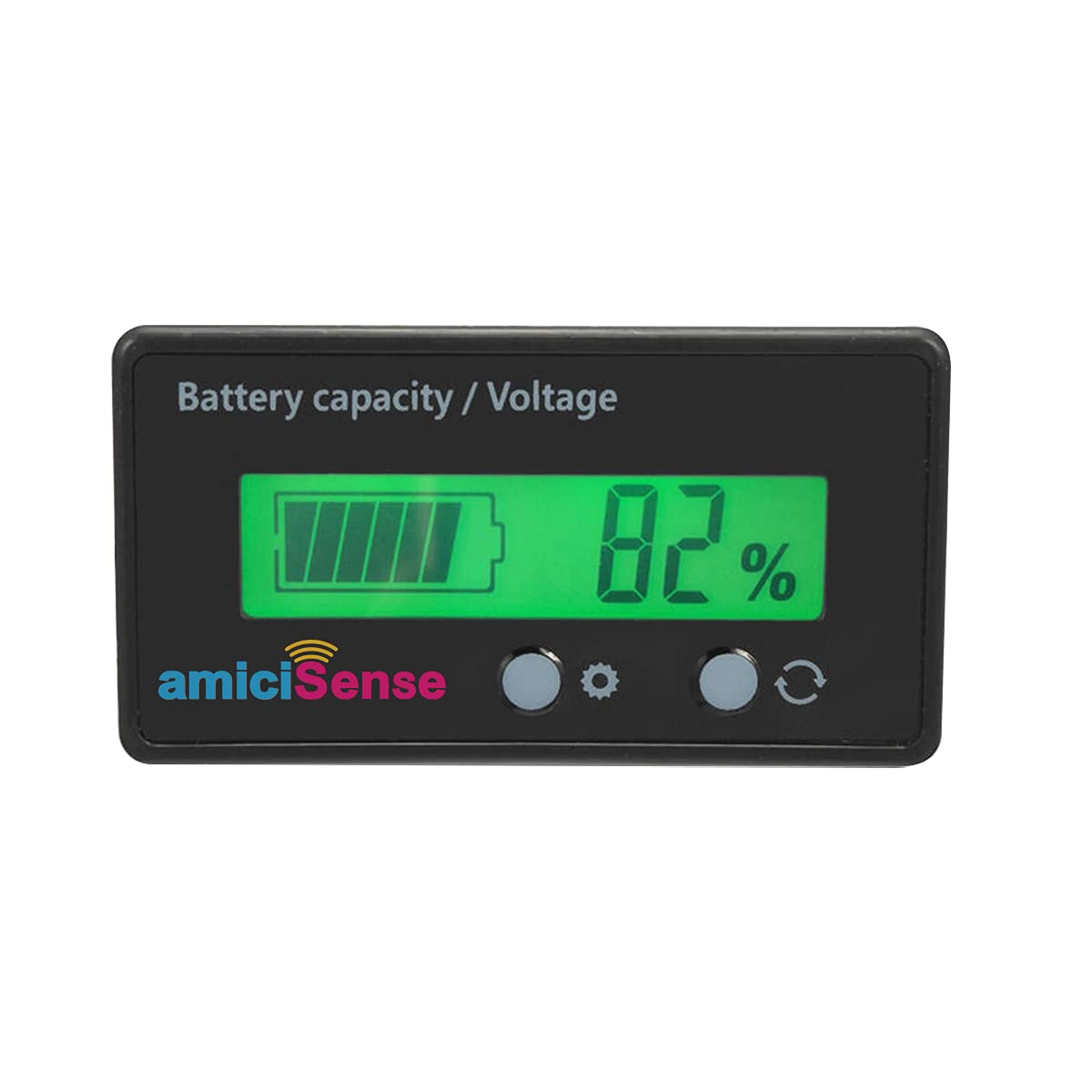

amiciSense 8~70V Battery Capacity Indicator for Lead Acid Battery, Check Battery Voltage and Charge Percentage of E-Rickshaw and E-Bikes, Green Display

Why do you need this? : -This device is used to check battery voltage and charge percentage. If you have an electric vehicle than you definitely require this product.
Display: – Large display with green back-lit ensure reading visibility in dark surroundings. Through settings you can keep back-lit off or on as per your requirement.
Usage:- Keep track of lead acid battery voltage and charge percentage. E-rickshaw, e-scooters, e-bikes, inverter battery, etc.
Connection: – To enter setting mode hold the setting button and then connect the cable to the battery. The display start to blink and now you have to set the battery type. Select P for Lead Acid Battery and select the battery voltage accordingly i.e. 1 for 12V, 2 for 24V, and so on.

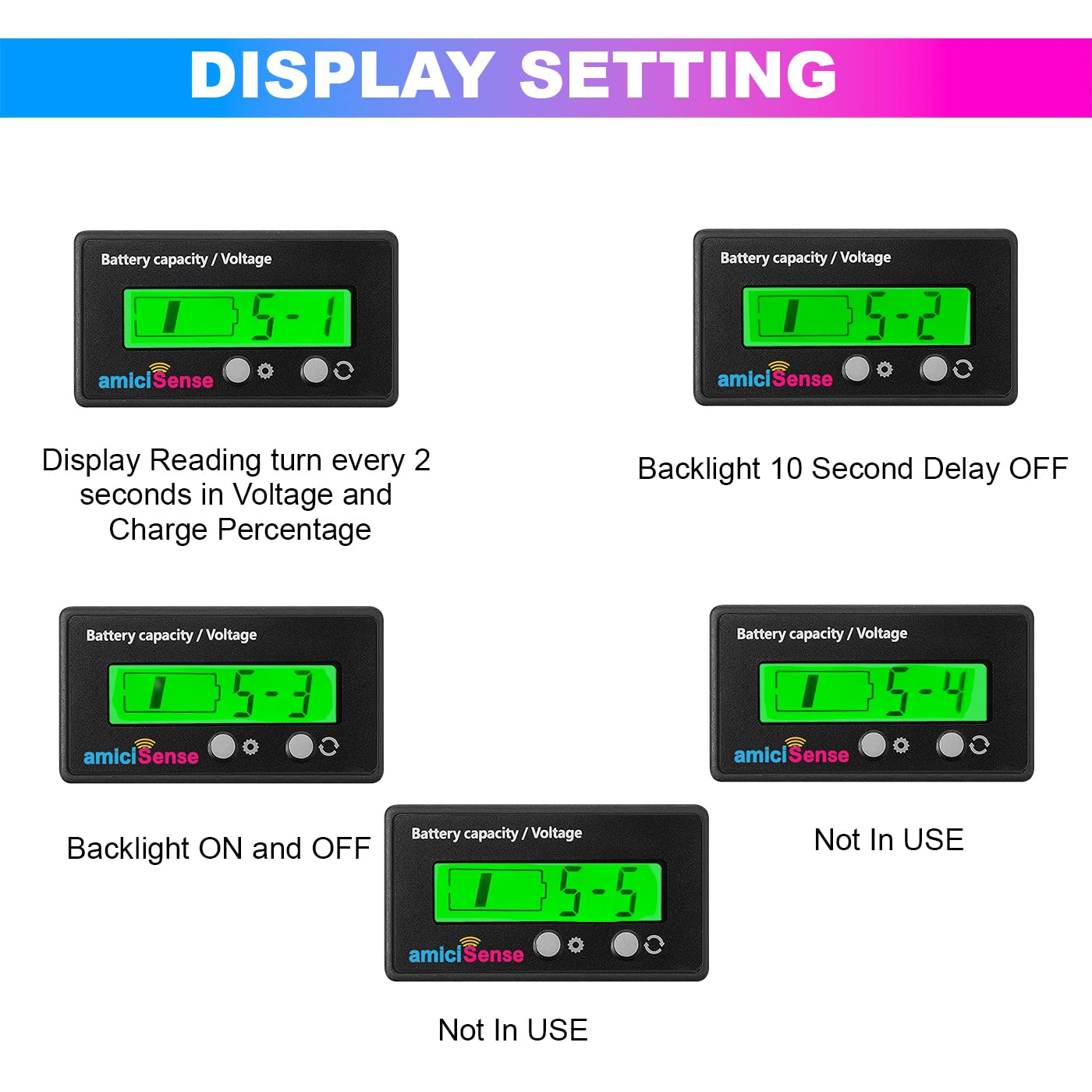

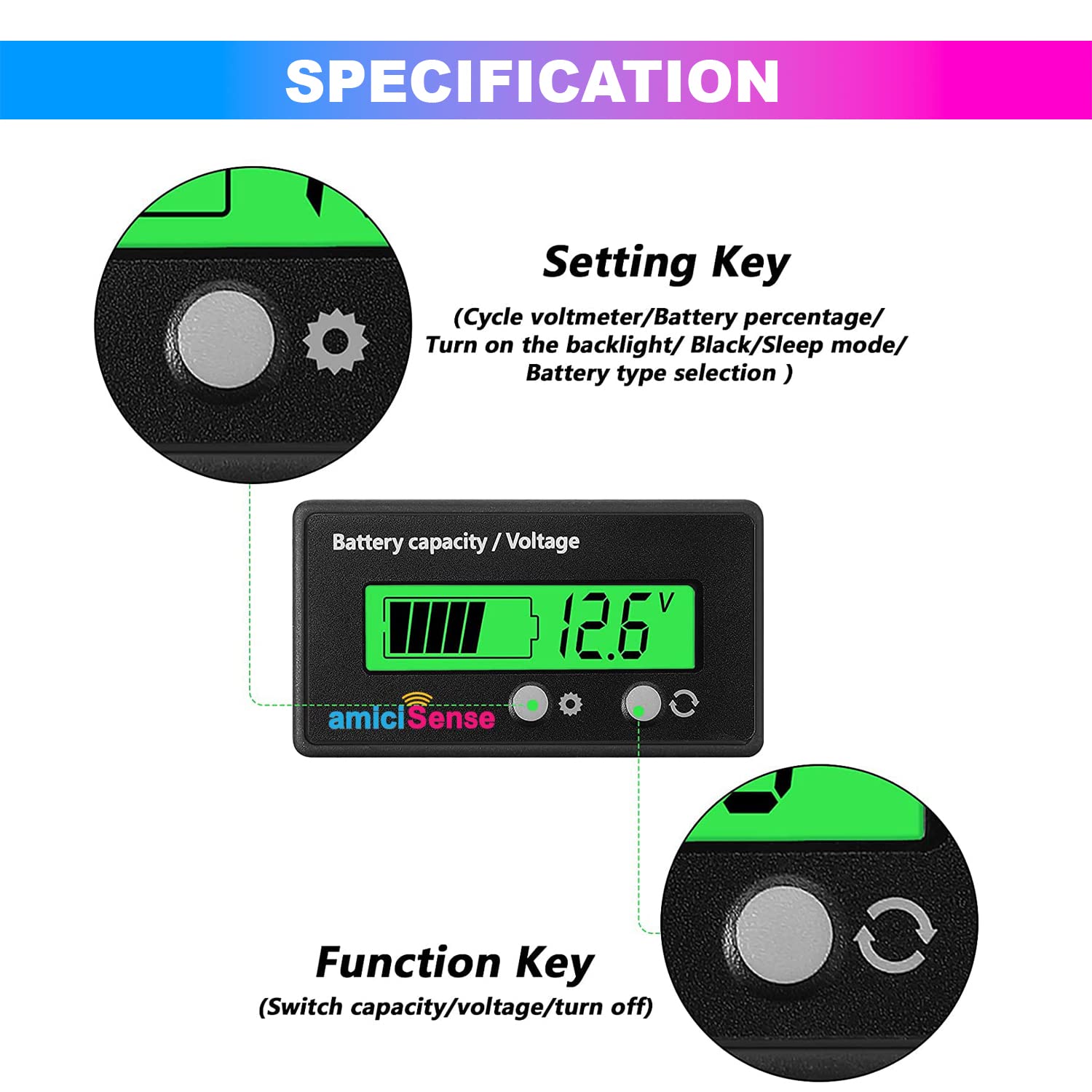

Display Setting: – S1 setting will help you select if you want to see both charge percentage and voltage or any one. S2 setting will turn off the back-lit after every 10 sec of usage. S3 is back-lit setting is to keep back-lit on or off.
Voltage Based SOC: – The charge percentage visible directly depends on the battery voltage; so if the battery is in charging mode the charge percentage will be 100%. With sudden voltage drop of the battery charger percentage will also drop.

Original price was: ₹1,200.00.Current price is: ₹699.00.

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

From the brand

Product Description

2 in 1 Dual Function

A device which is capable to test not only battery capacity but also battery voltage.

This battery monitor can tolerate widest working voltage range.Can be adjusted to 12V, 34V, 36V, 48V according to the battery voltage.Powered by tested circuit, don’t need extra power source.

To access the setting mode, please follow the steps below:

1. Remove the wire connection from the battery.

2. Press the setting button and simultaneously connect the wire to the battery.

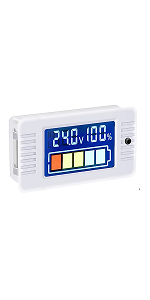

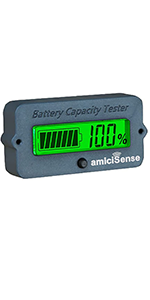

	8-70V LCD Acid Lead Lithium Li-Fo Battery Capacity Indicator	10-100V LCD Acid Lead Lithium Battery Capacity Indicator	10-100V LCD Lead Acid Li-Ion LiFePO Battery Capacity Indicator	0-100V DC Battery Capacity Indicator Voltmeter with Color LCD Display, Backlit	Coulometer 80V 100A True Battery Capacity Indicator Voltage Tester

Customer Reviews	1,358	632	119	24	17
Price	₹699.00	₹1,079.00	₹999.00	₹1,329.00	₹3,599.00
LED display	✓	✓	✓	✓	✓
Test lead acid battery	✓	✓	✓	✓	✓
Test lithium iron Phosphate batteries	No	✓	✓	✓	✓
Test nickel-metal hydride batteries	No	No	No	✓	✓
Voltage range	8-70V	10-100V	10-100V	0-100V	8-80V
Setting data storage	✓	✓	✓	✓	✓
Reverse Connection Protection	✓	✓	✓	✓	✓
Alarm Voltage (adjustable)	No	✓	✓	No	No
Delay Power Off (adjustable)	No	No	✓	No	No
Displays the correct battery capacity at the time of charging	No	No	No	No	Yes

Brand	‎amiciSense
Power Source	‎Battery Powered
Style	‎Digital
Colour	‎Green
Min. Operating Voltage	‎8 Volts (DC)
Measurement Type	‎Voltmeter
Maximum Operating Voltage	‎70 Volts (DC)
Manufacturer	‎Generic
Global Trade Identification Number	‎08904296704364
Country of Origin	‎China
Number of Memory Sticks	‎1
Item Weight	‎50 g

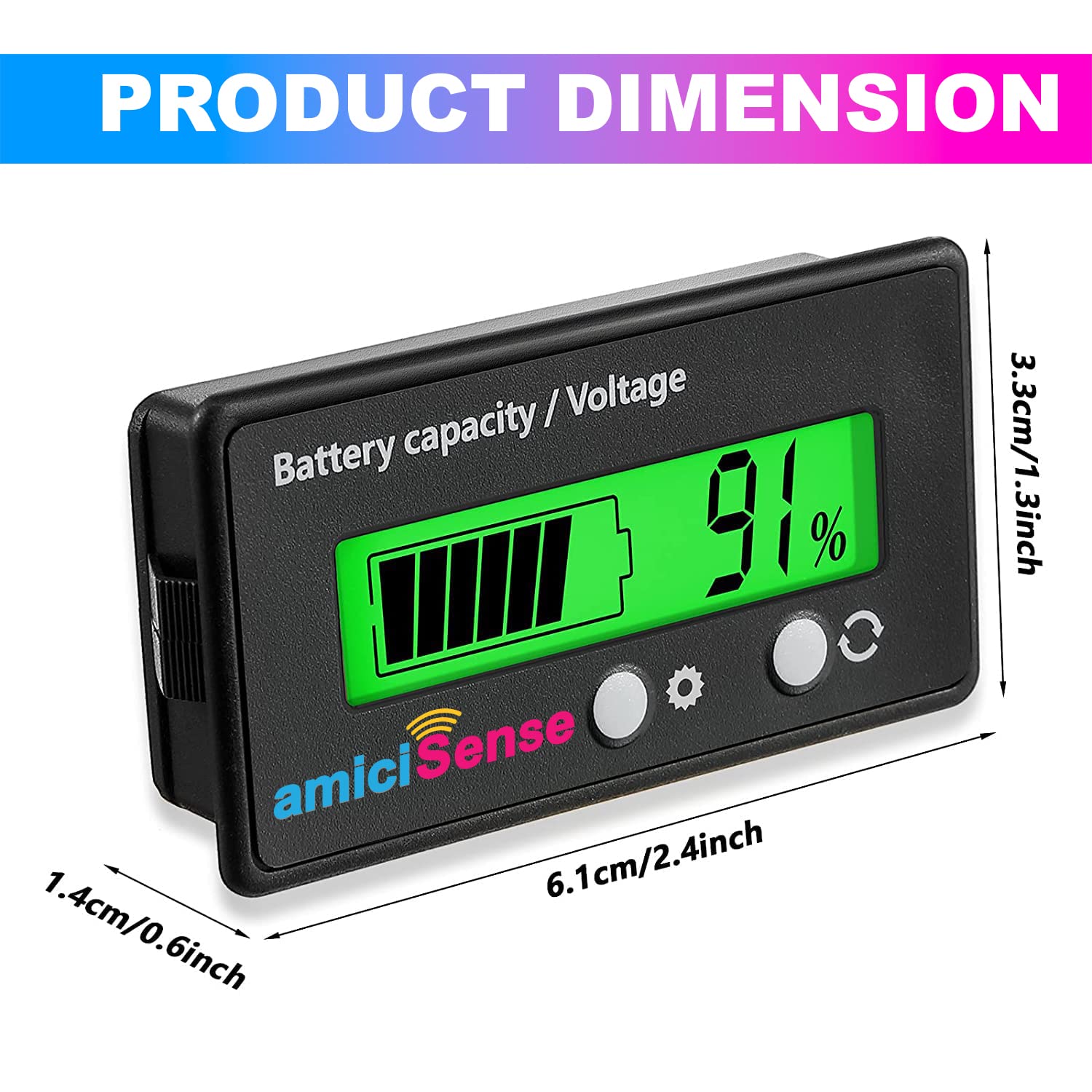

Package Dimensions	‎9.4 x 5.7 x 3.5 cm; 50 g
Item part number	‎1xVLT-TSTN
Included Components	‎Battery Capacity Indicator
Are batteries included?	‎No
